| ब्रांड नाम: | WINLEY |
| मॉडल संख्या: | डी-25/13.85 |
| एमओक्यू: | 1यूनिट |
| कीमत: | $1000-$10000 |
| पैकेजिंग विवरण: | प्लाईवुड मामले |
| भुगतान की शर्तें: | टी/टी |

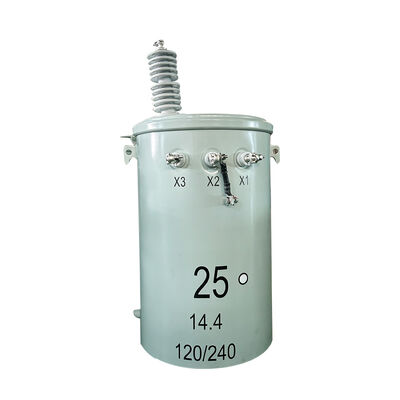

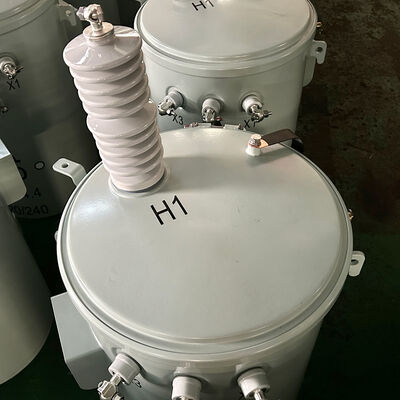

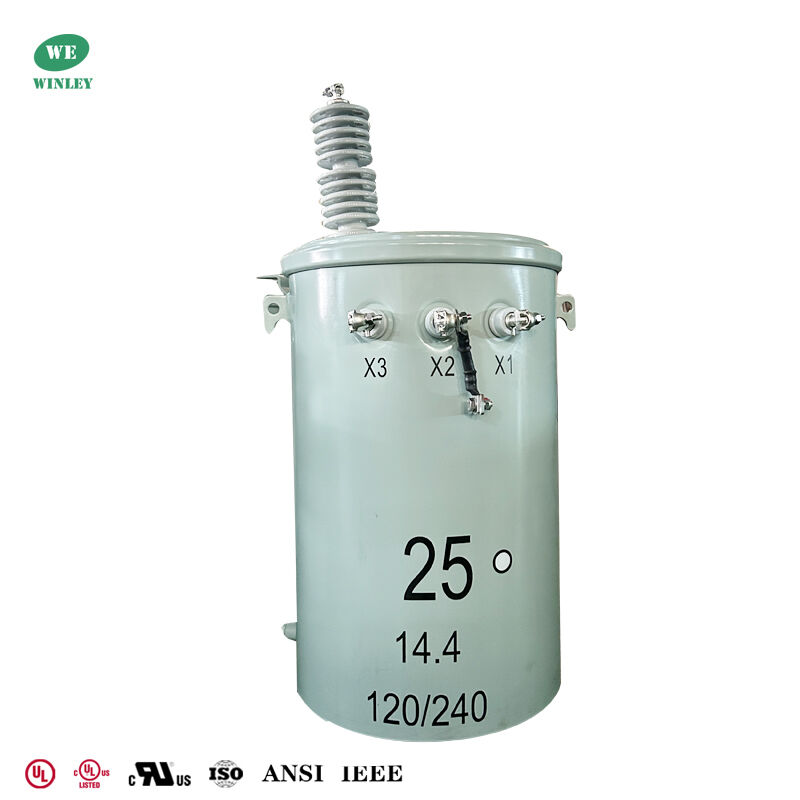

25kva Pole Mounted Transformer oil immersed power transformer 13.85KV CSA C2.2-06 Standard cUL Certified
Winley Electric’s 25 kVA single‑phase pole‑mounted transformer is a compact, rugged solution designed for Canadian overhead distribution needs. CUL certified to Canadian/North American standards and backed by a 30‑day delivery promise, this unit meets utilities’ and contractors’ requirements for reliability, code compliance, and fast turnaround.
Winley Electric's pole-mounted transformer UL and CUL certificates
UL certification cUL certification
Key specifications
Technical drawings
Benefits summary
Specifications
| 10kva-333kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 | 110 220 230 400 480 | II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||

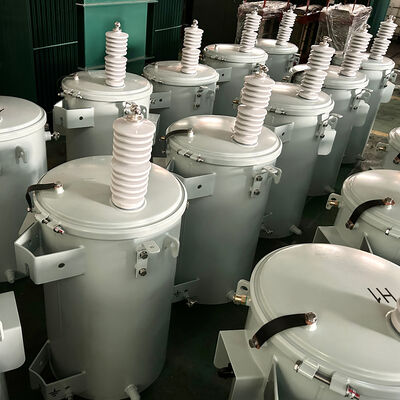

Production process
|
